Tensorboard 생성

Tensorboard 생성

학습 로그 저장 경로 확인

• Tensorboard 생성 전, 학습할 Notebook/Pytorchjob 생성 필수

• 진행한 학습 로그 저장 경로 확인

(예시)
LOGDIR = "/home/irteam/tb_logs"

• Tensorboard를 연결하기 위한 코드 주석 참고

import os
import time

import torch
import torch.nn as nn
import torch.optim as optim
from torchvision import datasets
from torch.utils.tensorboard import SummaryWriter

# TensorBoard 로그를 "쓰기 가능한 PVC경로"로 저장
# /home -> /home1(심볼릭링크)이고, /home/irteam 아래가 NFS(rw)로 마운트되어 있음
LOGDIR = "/home/irteam/tb_logs"

assert torch.cuda.is_available(), "CUDA GPU not available"
assert torch.cuda.device_count() >= 4, "Need at least 4 GPUs"

device = torch.device("cuda")
torch.backends.cuda.matmul.allow_tf32 = True

print("Visible GPUs:", torch.cuda.device_count())

# run 별로 폴더 생성
run_name = time.strftime("run-%Y%m%d-%H%M%S")
log_path = os.path.join(LOGDIR, run_name)
os.makedirs(log_path, exist_ok=True)

writer = SummaryWriter(log_dir=log_path)
print("TensorBoard logdir:", log_path)

raw = datasets.FashionMNIST(
    root="/tmp/data",
    train=True,
    download=True,
    transform=None
)

class FMNISTTensor(torch.utils.data.Dataset):
    def __init__(self, base):
        self.x = base.data
        self.y = base.targets

    def __len__(self):
        return self.x.size(0)

    def __getitem__(self, idx):
        x = self.x[idx].unsqueeze(0).float().div_(255.0)
        y = self.y[idx]
        return x, y

train_dataset = FMNISTTensor(raw)

train_loader = torch.utils.data.DataLoader(
    train_dataset,
    batch_size=1024,          # 총 배치 (GPU당 256)
    shuffle=True,
    num_workers=0,
    pin_memory=True
)

model = nn.Sequential(
    nn.Conv2d(1, 64, 3, padding=1),
    nn.ReLU(),
    nn.Conv2d(64, 128, 3, padding=1),
    nn.ReLU(),
    nn.MaxPool2d(2),
    nn.Flatten(),
    nn.Linear(128 * 14 * 14, 512),
    nn.ReLU(),
    nn.Linear(512, 10)
)

# 4-GPU DataParallel
model = nn.DataParallel(model, device_ids=[0, 1, 2, 3]).to(device)

optimizer = optim.Adam(model.parameters(), lr=1e-3)
criterion = nn.CrossEntropyLoss()
scaler = torch.cuda.amp.GradScaler()

print("Start training (4-GPU monitoring test, ~10 min)")
end = time.time() + 600
step = 0

model.train()
while time.time() < end:
    for x, y in train_loader:
        x = x.to(device, non_blocking=True)
        y = y.to(device, non_blocking=True)

        optimizer.zero_grad(set_to_none=True)

        with torch.cuda.amp.autocast(dtype=torch.float16):
            out = model(x)
            loss = criterion(out, y)

        scaler.scale(loss).backward()
        scaler.step(optimizer)
        scaler.update()

        step += 1

        # TensorBoard 로깅 (너 목적: 학습 진행 + GPU 메모리 확인)
        if step % 10 == 0:
            writer.add_scalar("train/loss", float(loss.item()), step)
            writer.add_scalar("train/lr", float(optimizer.param_groups[0]["lr"]), step)

            # GPU 메모리 메트릭
            writer.add_scalar(
                "gpu/mem_allocated_MiB",
                torch.cuda.memory_allocated() / 1024 / 1024,
                step
            )
            writer.add_scalar(
                "gpu/mem_reserved_MiB",
                torch.cuda.memory_reserved() / 1024 / 1024,
                step
            )
            writer.add_scalar(
                "gpu/max_mem_allocated_MiB",
                torch.cuda.max_memory_allocated() / 1024 / 1024,
                step
            )

        if step % 50 == 0:
            print(f"step={step}, loss={loss.item():.4f}")

        if time.time() >= end:
            break

torch.cuda.synchronize()

# 로그 flush/close
writer.flush()
writer.close()

print("Done")
print("TensorBoard logdir:", log_path)
print("Max GPU Mem (MiB):",
      torch.cuda.max_memory_allocated() / 1024 / 1024)

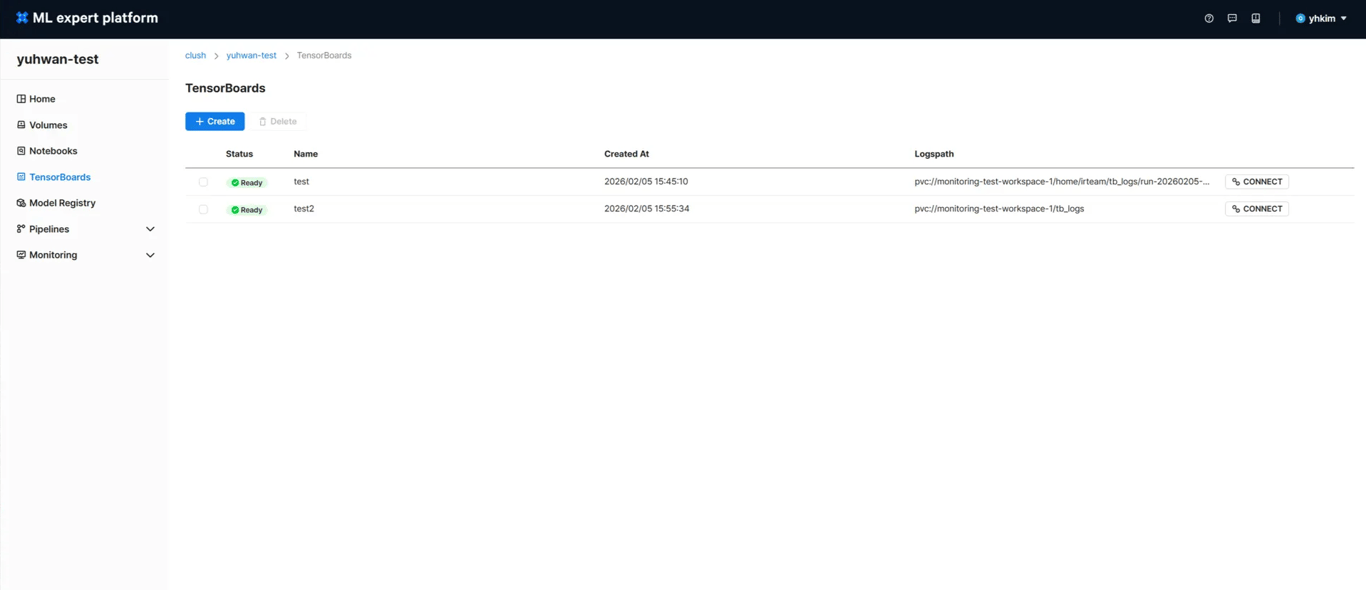

TensorBoard Create 버튼 클릭

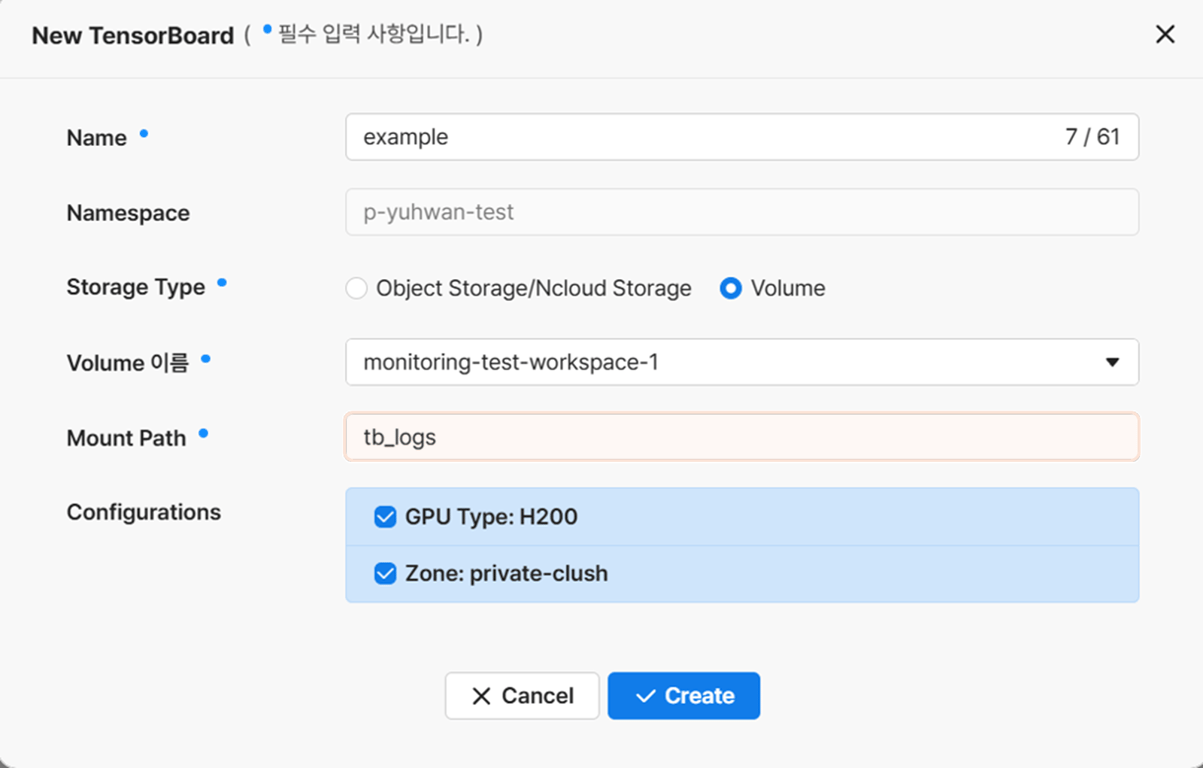

New TensorBoard 팝업에서 Mount Path 설정

• TensorBoard의 Mount Path는 학습 코드의 LOGDIR 경로와 동일하게 설정

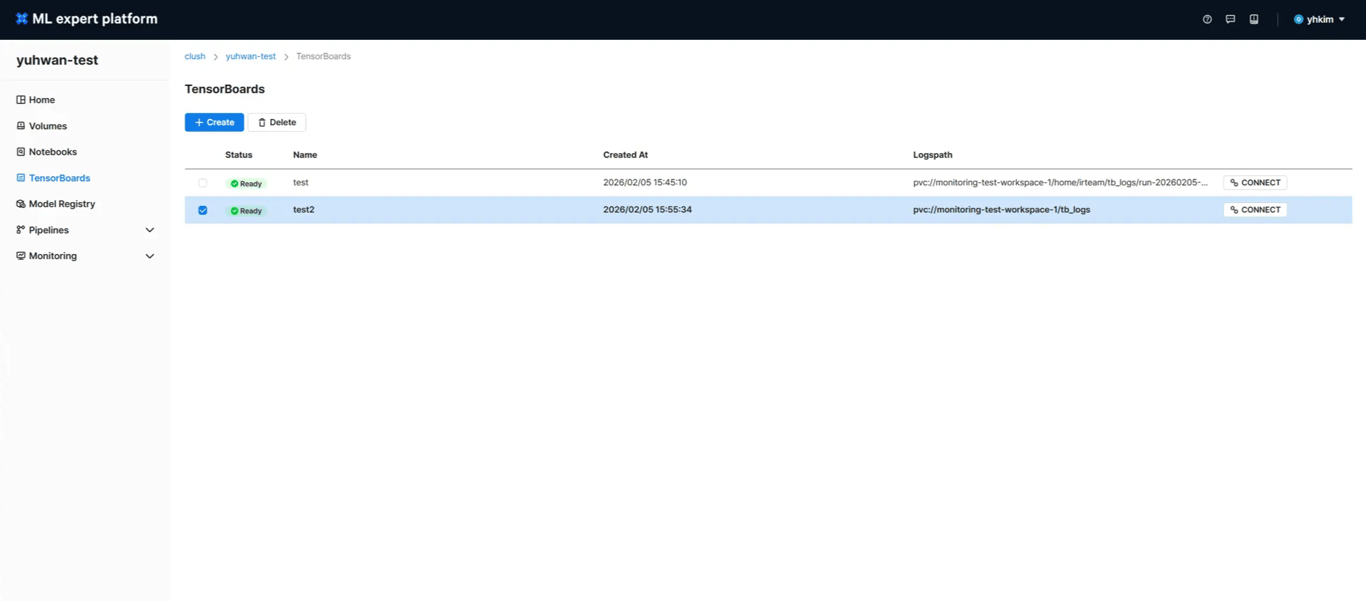

• Tensorboard의 crd와 Pod가 생성되며 Connect 버튼이 활성화

kim@Clush:~$ k get tensorboards
NAME    AGE
test    103m
test2   93m # 생성했던 Tensorboard
kim@Clush:~$ k get po
NAME                                               READY   STATUS      RESTARTS   AGE
gpu-burn-3m-worker-0                               0/1     Completed   0          2d3h
ml-pipeline-ui-artifact-7cf99c78c4-2422m           2/2     Running     0          3d4h
ml-pipeline-visualizationserver-74dd4d6b77-z2h8t   2/2     Running     0          3d4h
monitoring-test-0                                  2/2     Running     0          153m
test-1-0                                           2/2     Running     0          2d7h
test-8794f985-f2x9b                                2/2     Running     0          103m
test-gpu-0                                         2/2     Running     0          2d4h
test-with-config-0                                 0/2     Pending     0          6h33m
test2-766c68c4cf-x642n                             2/2     Running     0          93m
volume-test-1-0                                    0/2     Pending     0          128m
kim@Clush:~$

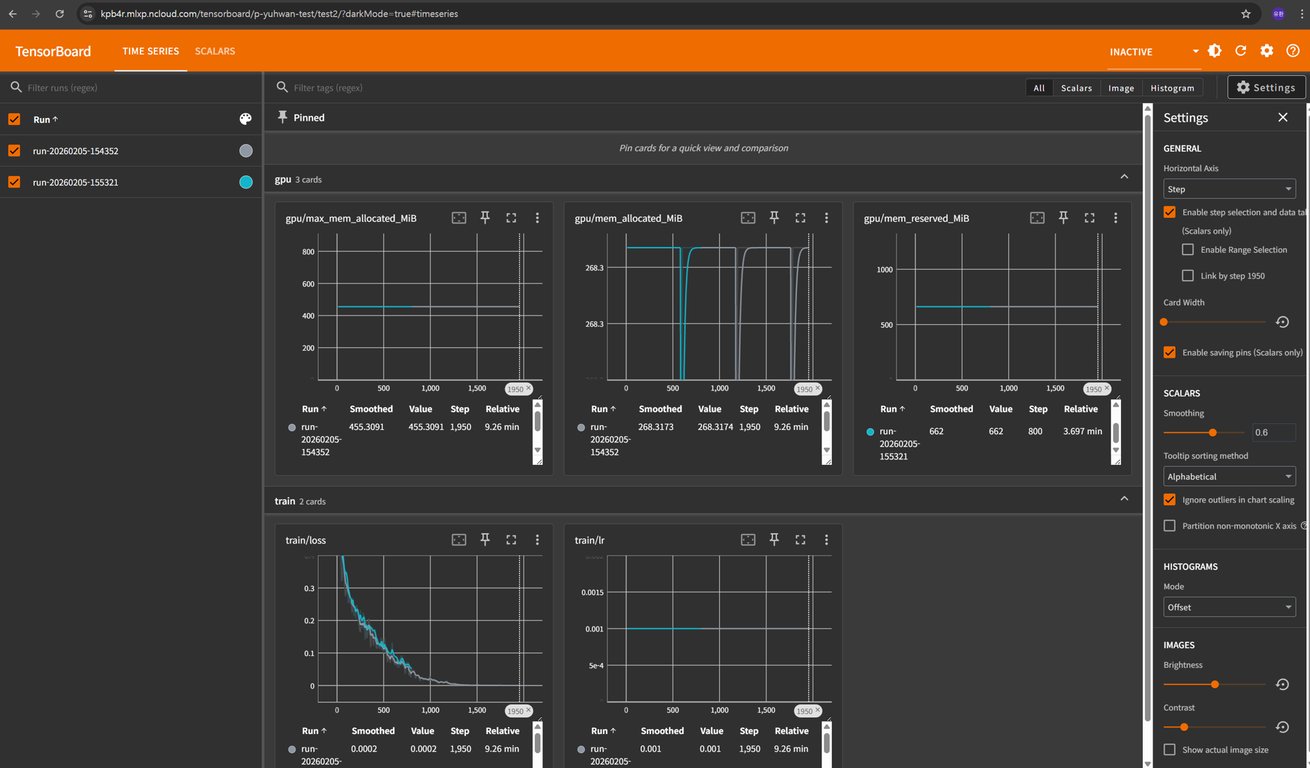

Connect 버튼 클릭 후 Tensorboard 활성화

• Tensorboard로 학습 모니터링
